Step-Up and Step-Down Transformers: Definition and Comparision

Transformers play a crucial role in modern electrical systems. Understanding what is the difference between step-up and step-down transformer is essential. A step-up transformer increases voltage, making it ideal for transmitting power over long distances, while a step-down transformer decreases voltage, ensuring electricity is safe for use in homes and businesses.

With global energy demand projected to rise by 30% by 2030, transformers are vital for integrating renewable energy, enhancing power systems, and supporting electric vehicle charging infrastructure.

Zoliov stands out as a leading provider of power distribution equipment. From advanced switchgear to power transformers, Zoliov delivers reliable and customized solutions for medium and low voltage applications, tailored to meet your specific needs.

Key Takeaways

• Step-up transformers raise voltage, making them good for sending power far.

• Step-down transformers lower voltage, making electricity safe for homes and offices.

• The coil turns in a transformer decide if voltage goes up or down.

• Using the right transformer stops overheating and protects devices from harm.

• Transformers are important for adding renewable energy to power systems.

• Checking transformers often helps stop problems and keeps them safe to use.

• Picking the right transformer means knowing your voltage and power needs.

• Transformers can work backward, but this might waste energy and cause overheating.

What Is the Difference Between Step-Up and Step-Down Transformers?

Voltage Transformation: Increasing vs. Decreasing Voltage

Step-up and step-down transformers work differently with voltage. A step-up transformer raises voltage, which helps send electricity far away. High voltage lowers power loss, making delivery more efficient. A step-down transformer lowers voltage, making it safe for homes, offices, and factories. Low voltage reduces danger and works well with daily devices.

Voltage changes are very important in today’s power systems. For example:

• HVDC technology cuts power loss and keeps grids steady.

• Transformers connect grids, helping share electricity between countries.

The need for more electricity and bigger power networks shows how important transformers are for moving and sharing power.

Coil Configuration and Winding Turns

The way a transformer’s coils are set up decides if it raises or lowers voltage. A step-up transformer has more turns in its secondary coil than its primary coil. This setup boosts voltage but lowers current. A step-down transformer has fewer turns in its secondary coil, which lowers voltage but raises current.

The number of coil turns is key to voltage changes. For example, if the secondary coil has double the turns of the primary coil, the voltage doubles. This design allows accurate voltage control, making transformers useful in many ways.

Current Flow and Efficiency

Current flow and efficiency depend on the transformer type. A step-up transformer lowers current while raising voltage. Less current means less heat and energy loss, making it great for sending power far.

A step-down transformer raises current while lowering voltage. More current gives enough power for devices. But it must be carefully made to avoid overheating and stay efficient.

Transformers are crucial for changing voltage and measuring power accurately. They help manage current flow, ensuring energy is shared safely and efficiently.

What Is a Step-Up Transformer?

Definition and Function

A step-up transformer is a tool that raises voltage. It takes low voltage and increases it to a higher level. This is important for sending electricity over long distances. By boosting voltage, it helps reduce energy loss during transmission. These transformers are used where efficient power delivery is needed.

The primary coil gets electricity at a low voltage. The secondary coil sends out electricity at a higher voltage. This change allows electricity to travel far without losing much energy.

How Step-Up Transformers Work

Step-up transformers use electromagnetic induction to work. Electricity in the primary coil makes a magnetic field. This field creates a current in the secondary coil. The number of turns in the secondary coil decides how much the voltage increases.

For instance, if the secondary coil has twice the turns of the primary coil, the voltage doubles. This design helps control voltage levels accurately. By raising voltage, step-up transformers lower current flow. Less current means less heat and energy loss. This makes them great for sending electricity far away efficiently.

Tip: Always pick a transformer that matches your voltage needs to avoid problems or damage.

Common Applications of Step-Up Transformers

Power Transmission Systems

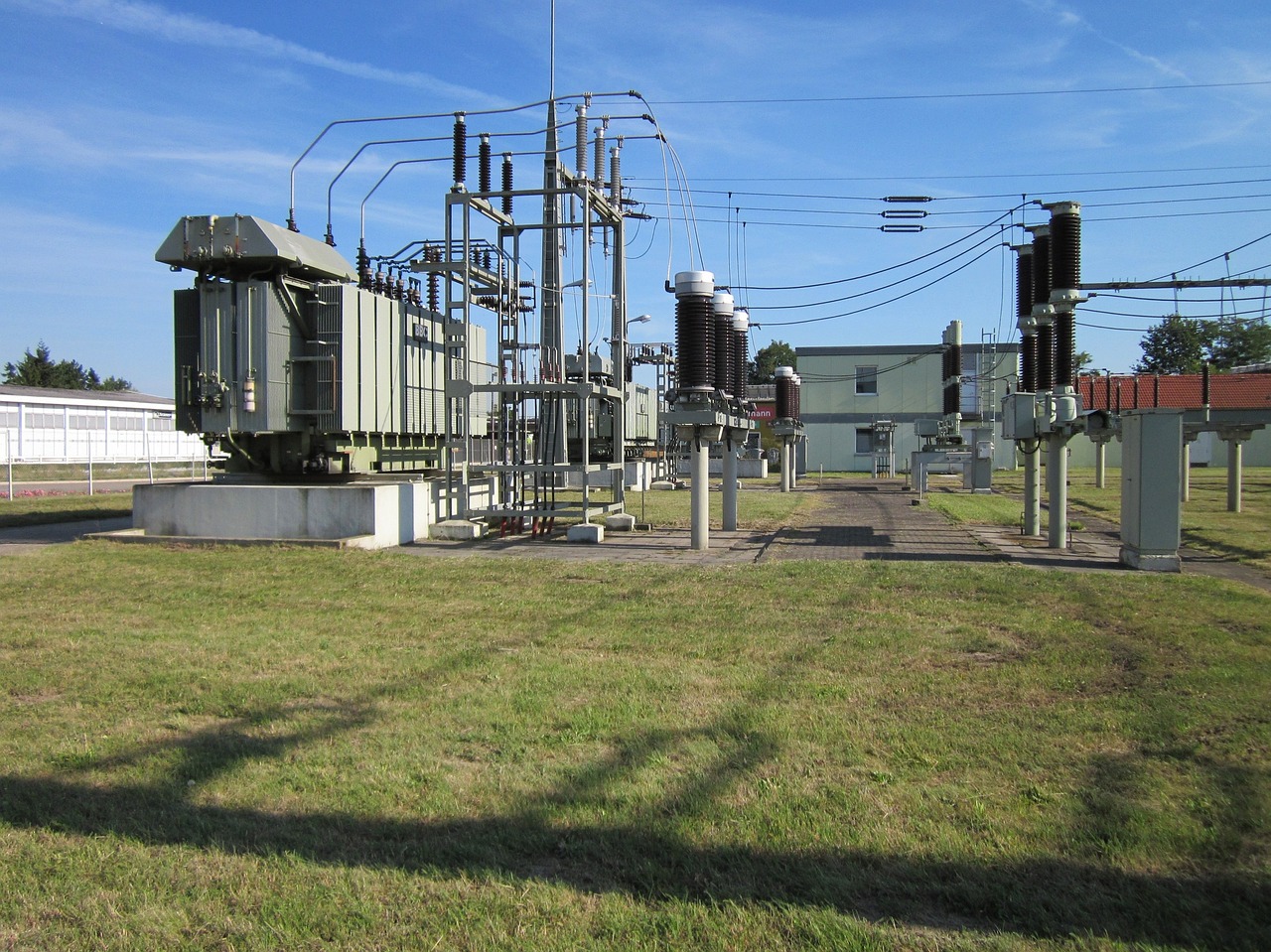

Step-up transformers are key in power transmission systems. They raise voltage to cut energy loss during long-distance electricity travel. High voltage ensures power reaches cities, factories, and rural areas effectively.

Modern power grids depend on step-up transformers to link power plants to networks. By increasing voltage, they help deliver electricity across large areas. This technology supports sharing energy globally and keeps power grids stable.

Industrial and Renewable Energy Applications

Step-up transformers meet the high power needs of industries and renewable energy systems. They are used in factories, mining sites, and chemical plants. These places need steady and strong power for their machines.

In renewable energy, step-up transformers connect wind and solar farms to the grid. They raise voltage to make power delivery more efficient. As power networks grow in new areas, the need for step-up transformers increases.

• Step-up transformers provide steady power to big buildings and data centers.

• New technology is improving their use for different industries.

Note: Step-up transformers are crucial for adding renewable energy to power grids. They help lower carbon emissions and support sustainability. To meet these demanding power requirements, ZOLIOV’s step-up transformers combine robust construction with energy-efficient designs, ensuring reliable voltage transformation for industrial and renewable applications. Our solutions deliver stable performance while minimizing operational losses.

What Is a Step-Down Transformer?

Definition and Function

A step-down transformer lowers high voltage to a safer level. It changes electricity with high voltage into a lower one for daily use. This makes it important for powering homes, offices, and small businesses.

The primary coil gets electricity at high voltage. The secondary coil sends out electricity at a lower voltage. This process makes sure the electricity is safe for your devices.

Step-down transformers are very important in today’s electrical systems. Without them, high voltage could harm devices and create safety problems.

How Step-Down Transformers Work

Step-down transformers also use electromagnetic induction to work. Electricity in the primary coil makes a magnetic field. This field creates a current in the secondary coil. The number of turns in the secondary coil decides how much the voltage drops.

For example, if the secondary coil has half the turns of the primary coil, the voltage is cut in half. This design helps control voltage levels exactly. By lowering voltage, the step-down transformer increases current flow. This ensures enough power reaches your devices.

Tip: Always check your transformer’s voltage rating to match your needs. Using the wrong one can cause damage or waste energy.

Common Applications of Step-Down Transformers

Residential Power Distribution

Step-down transformers are key for home power systems. They lower the high voltage from power lines to a safer level for houses. This makes sure the electricity in your home is safe for lights, heaters, and other needs.

Power companies use step-down transformers near neighborhoods. These transformers lower voltage so it can safely travel through local lines. Without them, the high voltage from power lines would be too dangerous for homes.

Household Appliances and Electronics

Most home devices need step-down transformers to work. Things like fridges, TVs, and chargers need specific voltage levels. A step-down transformer makes sure they get the right voltage.

For example:

• Your phone charger has a small step-down transformer to lower the outlet’s high voltage for charging.

• Kitchen tools like microwaves and blenders use step-down transformers to work safely.

These transformers protect devices from power surges and help them work well. They also make electronics last longer by giving steady power.

Note: Using the wrong voltage for devices can cause overheating or damage. Step-down transformers stop these problems by giving the correct voltage.

Can Transformers Be Used in Reverse?

Reversibility of Step-Up and Step-Down Transformers

Did you know transformers can work backward? It’s true! A step-up transformer can act like a step-down transformer, and the opposite is also possible. This happens by switching how the input source is connected. For example, if you connect the input to the secondary coil (which has fewer turns), a step-up transformer becomes a step-down transformer. Similarly, a step-down transformer can raise voltage if the input connects to its secondary coil.

This works because transformers use electromagnetic induction, not current direction. The coil design and number of turns decide how the voltage changes. By swapping the input and output connections, you can reverse what the transformer does.

Practical Limitations of Reversibility

Even though transformers can work backward, there are limits. First, the transformer might not work efficiently in reverse. Manufacturers design transformers for specific jobs, like raising or lowering voltage. Using them backward could cause overheating or waste energy.

Second, insulation and cooling systems may not handle reversed use. For example, a step-up transformer made for high voltage might struggle as a step-down transformer. Reversed current flow can wear out parts faster.

Lastly, the transformer’s size matters. Small transformers might not handle extra current when reversed. Always check the specs before using a transformer backward.

Scenarios Where Reversibility Is Useful

Reversing a transformer can help in certain cases. For example:

• Temporary Power Needs: If you need a step-up transformer but only have a step-down transformer, reversing it can work.

• Testing and Experimentation: Engineers often reverse transformers to study how they behave.

• Emergency Situations: In emergencies, reversing a transformer can fix voltage problems quickly.

Reversing transformers gives flexibility, but use it carefully. Make sure the transformer’s capacity fits your needs to avoid damage or inefficiency.

Safety Considerations When Using a Transformer

Overloading and Overheating Risks

Using too much power can harm a transformer. If it handles more power than it should, it gets too hot. This extra heat can break parts inside and make it work poorly. In Dangila town, Ethiopia, many transformers stopped working because of overloading. These failures caused power outages, showing why managing power loads is important.

Heat also damages the insulation inside the transformer. Weak insulation makes the device more likely to break. Between 2005 and 2010, overheating caused moderate damage to insulation in transformers.

Here’s a table of common reasons transformers fail:

Failure Cause	Failure Level	Time Period
Overloading and poor cooling	High	2000-2005
Insulation damage from heat	Moderate	2005-2010
Other causes	Low	2010-2015

To prevent these problems, check the power load and use good cooling systems.

Proper Installation and Maintenance

Setting up a transformer the right way keeps it safe. Put it in a dry place with good airflow to stop moisture and overheating. Tighten all connections to avoid electrical issues.

Taking care of the transformer helps it last longer. Look for worn-out parts like damaged insulation or loose wires. Clean cooling systems to stop dust from blocking airflow and causing heat problems.

Make a plan to check the transformer regularly. Replace old parts before they break. These steps keep the transformer working well and lower the chance of accidents.

Tip: Follow the maker’s instructions for setup and care to get the best results.

Importance of Using the Correct Transformer

Picking the right transformer is very important. A high-voltage transformer might not work well for low-voltage needs. Using the wrong one can waste energy, overheat, or harm equipment.

Think about your power needs before choosing a transformer. For example, step-down transformers are great for homes, while step-up transformers work better for factories and renewable energy.

The right transformer also keeps things safe. It stops electrical problems and gives devices the right power. This lowers the risk of fires and broken equipment.

Note: If you’re unsure, ask an expert. They can help you pick the best transformer for your needs.

How to Choose the Right Transformer for Your Needs

Understanding Voltage and Power Needs

To pick the right transformer, know your voltage and power needs. The voltage must match your system to work properly. For example, a 120V transformer won’t work well in a 240V system. Also, check the transformer’s frequency, like 50Hz or 60Hz, to avoid problems.

Power needs are just as important. Transformers are rated in kVA, which shows how much power they can handle safely. For instance, a 50 kVA transformer can manage up to 50,000 volt-amperes. It’s important to know the difference between kVA and kW. kVA is total power demand, while kW is actual energy used. This helps you use power better and save energy.

The size of the transformer matters too. A small transformer may overheat or break under heavy use. A big transformer can waste energy and cost more. Higher voltage needs thicker insulation, which affects the size and design. By checking these things, you can choose a reliable and efficient transformer.

Matching the Transformer to Your Needs

The type of transformer depends on how you’ll use it. Factories may need step-up transformers for high voltage machines or renewable energy. Homes and small businesses often need step-down transformers for safe voltage levels.

Think about where the transformer will be used. Outdoor transformers must handle bad weather. Indoor ones should be small to fit tight spaces. For example, Zoliov’s compact transformers are great for crowded city areas.

Also, consider the load type. Data centers and hospitals need transformers that give steady power. For solar or wind energy, transformers must handle changing power levels. Picking the right transformer for your use keeps it safe and working well.

Balancing Cost and Features

Cost is important when choosing a transformer. Cheap transformers may seem good but can cost more later. A good-quality transformer saves energy, needs less fixing, and lasts longer.

Modern transformers have better cooling, insulation, and smaller designs. These features make them safer and more efficient. For example, Zoliov’s transformers are built to work well in many places.

When thinking about cost, look at the total expense, not just the price. This includes setup, care, and energy use. Spending more on an efficient transformer can save money on energy bills. By balancing cost and features, you can find a transformer that works well and lasts long.

Tip: Talk to experts or companies like Zoliov to pick the best transformer for your needs.

Knowing how step-up and step-down transformers differ is important. Step-up transformers raise voltage to send power far away. Step-down transformers lower voltage to make it safe for homes. Understanding these uses helps you pick the right transformer.

Think about your voltage needs and where you’ll use it. Zoliov provides reliable transformers for many power needs. With 20+ years of experience, Zoliov ensures durable and efficient solutions for every project.

FAQ

What does a transformer do?

A transformer changes voltage to fit different needs. It raises voltage for sending power far or lowers it for safe use in homes.

Can transformers work with solar or wind energy?

Yes, they connect solar panels and wind turbines to the grid. They adjust voltage to deliver power efficiently.

How do you take care of a transformer?

Check it often for damage, clean cooling parts, and tighten wires. Follow the maker’s instructions to keep it working safely.

What happens if a transformer gets too much power?

Too much power makes it overheat, breaking parts inside. This lowers how well it works and can cause it to stop.

Can transformers be used outside?

Yes, outdoor transformers are built to handle bad weather. Install and maintain them properly to keep them working well.

How do you pick the right transformer?

Know your voltage and power needs. Think about where and how you’ll use it. Ask an expert if you’re unsure.

Why does coil design matter in a transformer?

The coil design decides if voltage goes up or down. The number of coil turns controls how much the voltage changes.

Can transformers work backward?

Yes, they can by switching input and output. But they might not work as well or last as long this way.
