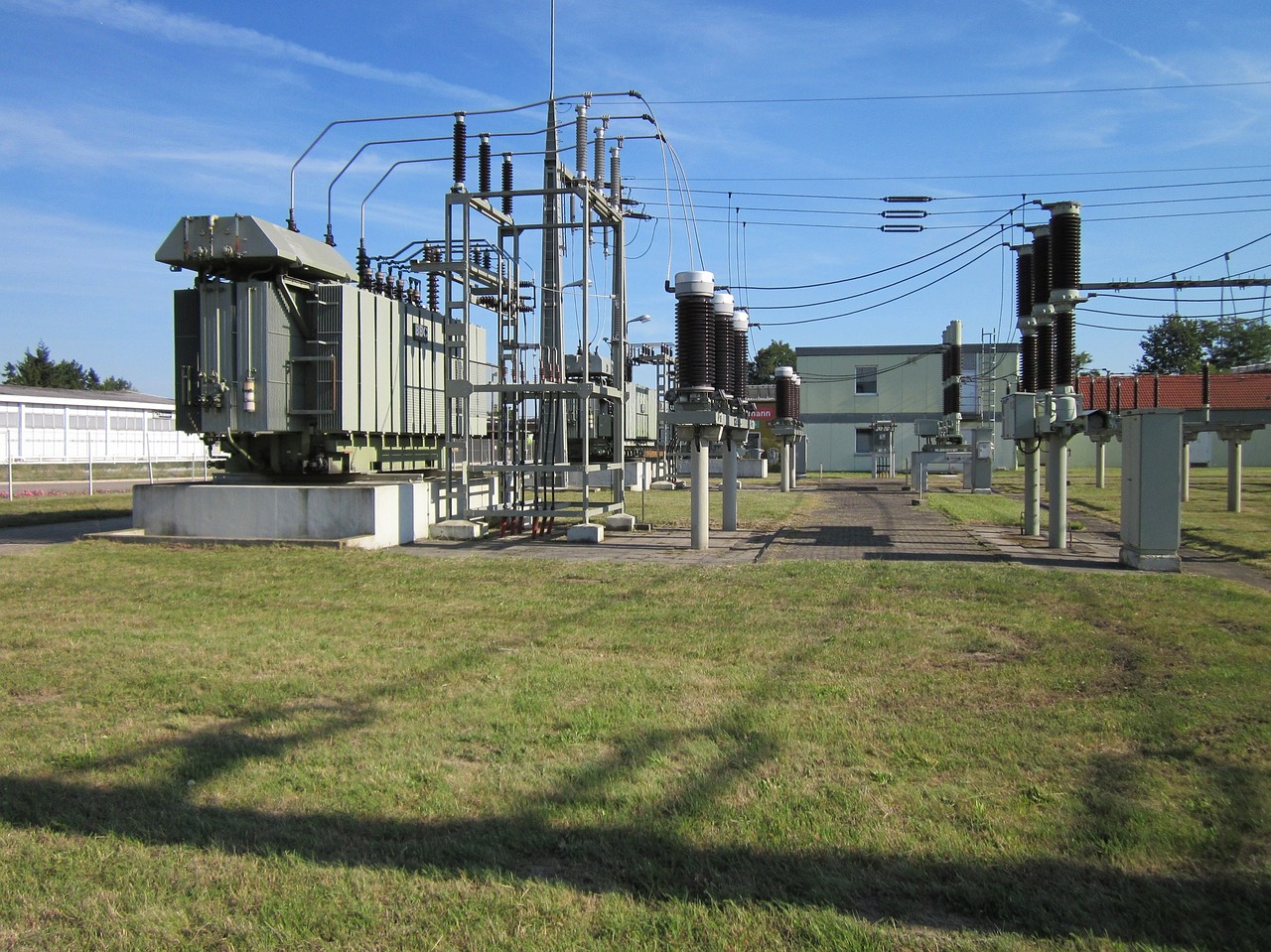

A 3 phase distribution transformer is a device that changes voltage levels in a three-phase system, supporting the delivery of three phase supply to commercial and industrial facilities. These transformers step voltage up or down, ensuring stable three-phase electricity for equipment and lighting. Three-phase transformers provide higher efficiency and lower energy loss than single-phase units, making them vital for modern power distribution.
Many commercial buildings and factories rely on these transformers for reliable three phase supply and to handle heavy or variable loads.
|
Category |
Percentage / Volume |
Notes |
|---|---|---|
|
Three-phase units |
5% of unit volumes |
Represent 52% of total transformer capacity globally |
|
Industrial applications |
35% of annual shipments |
Includes 630,000 units installed in 2023, with 45% rated above 500 kVA |
|
Commercial buildings |
22% of annual shipments |
396,000 units deployed in 2023, averaging 250 kVA per building |
Zoliov offers advanced 3-phase transformer solutions designed for reliable, efficient, and safe operation in every three phase system.
Contact Zoliov
Find more details about Power Distribution Solution
Key Takeaways
-
A three-phase distribution transformer changes voltage levels in a three-phase power system to supply commercial and industrial facilities with stable electricity.
-
These transformers use three sets of windings spaced 120 degrees apart, allowing efficient and balanced power transfer with less energy loss than single-phase transformers.
-
Star (wye) and delta wiring configurations help match different load needs; star provides a neutral for single-phase loads, while delta supports heavy industrial motors.
-
Tap changers adjust voltage levels to keep output stable under varying loads, improving power quality and system reliability.
-
Three-phase transformers are essential in power distribution, supporting large equipment, reducing energy loss, and ensuring safe, efficient operation in commercial and industrial settings.
3 Phase Distribution Transformer Overview
Definition
A 3 phase distribution transformer is a specialized electrical device designed to convert voltage levels within a three-phase power system. This transformer consists of three sets of primary and secondary windings, each spaced 120 degrees apart on a laminated iron core. The design allows the transformer to handle three-phase electrical currents, which are common in commercial and industrial environments. Unlike single-phase transformers, which serve residential and light commercial needs, three-phase transformers support higher power loads and more complex electrical systems.
Three-phase transformers combine three single-phase units into one compact structure, maximizing magnetic efficiency and minimizing energy loss.
The construction of a three-phase transformer involves advanced cooling systems, such as oil natural air natural (ONAN) or oil forced air forced (OFAF), to maintain safe operating temperatures. The transformer uses star or delta configurations to adapt to different voltage requirements and load types. This flexibility makes the three-phase transformer essential for distributing electricity across large facilities and power grids.
|
Aspect |
Single-Phase Transformer |
Three-Phase Transformer |
|---|---|---|
|
Construction |
One primary and one secondary coil on a single iron core |
Three sets of primary and secondary coils spaced 120° apart on a three-section iron core |
|
Application |
Residential and light commercial use |
Heavy industrial, power grids, and large commercial applications |
|
Efficiency |
Sufficient for low power loads, generally lower efficiency |
Higher efficiency, suitable for higher power loads |
|
Cooling Requirements |
Usually no cooling system needed |
Requires extensive cooling systems (e.g., ONAN, ONAF, OFAF) |
|
Configuration |
Simple, either star or delta |
Complex, uses star or delta configurations |
|
Cost-Effectiveness |
Lower initial cost |
More cost-effective over long term due to efficiency and performance |
|
Noise Levels |
Generally lower noise |
Higher noise levels |
|
Space Requirements |
Smaller size, easier installation on poles |
Larger size, requires more space |
|
Voltage Quality |
Voltage drop reduced due to direct medium-voltage supply |
Suitable for wide power distribution with stable voltage |
|
Reliability |
Higher reliability due to independent units; faults affect only part of the system |
Fault in one phase coil can cause entire transformer outage |
Main Function
The main function of a three-phase transformer is to step voltage up or down while maintaining the same frequency in a three-phase system. This process ensures that industrial and commercial facilities receive the correct voltage for their equipment and operations. The transformer achieves this through electromagnetic induction between the primary and secondary windings, with no direct electrical connection between them.
Three-phase transformers play a crucial role in distributing power efficiently. They support heavy machinery, lighting systems, and motor-driven equipment by providing stable three-phase supply. The transformer can use star or delta wiring configurations to deliver various voltage outputs, such as 480V, 277V, 240V, 208V, and 120V. This adaptability allows facilities to power both three-phase and single-phase loads from the same transformer.
-
Common applications for three-phase distribution transformers include:
-
Stepping down high voltage for industrial power distribution.
-
Powering industrial motors, drives, and equipment that require three-phase power.
-
Supporting sectors like steel, mining, oil and gas, chemical, and automotive.
-
Enabling processes such as refining, mixing, pumping, and heating.
-
Regulating speed and direction in motor control systems.
-
Facilitating voltage upscaling in power generation plants, including hydroelectric, thermal, nuclear, wind, and solar.
-
Integrating renewable energy sources and battery energy storage systems with the grid.
-
A 3-phase transformer provides reliable and efficient voltage conversion for large-scale operations. Facilities benefit from reduced energy loss, improved conductor efficiency, and stable voltage quality. The transformer’s robust design and advanced cooling systems ensure safe operation even under heavy loads.
Three-phase transformers remain the backbone of modern power distribution, supporting complex electrical networks and enabling the growth of industrial and commercial sectors.
Three Phase Transformer Operation
Electromagnetic Induction Principle
A three phase transformer operates using the principle of electromagnetic induction. This process allows the transformer to transfer electrical energy from one circuit to another without direct contact. Each phase in a three-phase transformer has its own primary and secondary winding. These windings wrap around a shared magnetic core, which usually has three limbs—one for each phase.
When alternating current flows through the primary windings, it creates an alternating magnetic flux in the core. This flux links to the secondary windings. According to Faraday’s law, the changing magnetic field induces a voltage in the secondary windings. The three phases are spaced 120 degrees apart, which ensures balanced power transfer and smooth operation.
The vector sum of the magnetic fluxes from all three phases always equals zero. This unique property allows the three phase transformer to use a smaller core than three separate single-phase transformers.
The following table summarizes how electromagnetic induction enables voltage transformation in three-phase transformers:
|
Component |
Function/Description |
|---|---|
|
Primary Windings |
Receive AC input voltage, generating alternating magnetic flux in the shared magnetic core. |
|
Magnetic Core |
Channels the alternating magnetic flux produced by the primary windings; typically has three limbs. |
|
Secondary Windings |
Induce voltage from the magnetic flux, producing the transformed output voltage for each phase. |
Key points about electromagnetic induction in three-phase transformers:
-
Each phase has a pair of windings, magnetically linked through the core.
-
The alternating current in the primary windings generates a changing magnetic field.
-
This field induces a voltage in the secondary windings.
-
The turns ratio between the windings determines the output voltage for each phase.
-
The 120-degree phase displacement allows for balanced and efficient three-phase voltage transformation.
Voltage Conversion
A three phase transformer steps up or steps down voltage while keeping the frequency unchanged. The transformer achieves this by using the interaction between the primary and secondary windings. When the primary winding receives three phase voltage, it creates a magnetic field in the core. This field induces a voltage in the secondary winding. The amount of voltage change depends on the ratio of turns between the primary and secondary windings.
-
Three phase transformers contain three sets of windings, each set for one phase.
-
The windings connect in star or delta configurations, such as star-star, delta-delta, star-delta, or delta-star.
-
The connection type affects the line and phase voltages, as well as the current flow.
-
The windings are labeled A, B, C for the primary side and a, b, c for the secondary side, which helps define the phase relationships.
The voltage transformation follows this formula:V2 = (N2 / N1) × V1
where V1 is the primary voltage, V2 is the secondary voltage, N1 is the number of turns in the primary winding, and N2 is the number of turns in the secondary winding.
A step-up three phase transformer has more turns on the secondary winding than the primary. This increases the voltage on the secondary side. A step-down transformer has fewer turns on the secondary winding, which lowers the voltage. The transformer can handle typical primary voltages such as 11 kV, 22 kV, or 33 kV. It steps these down to secondary voltages like 400 V or 415 V, which are common in commercial and industrial systems.
For example, a three-phase transformer might convert 11 kV on the primary side to 0.415 kV on the secondary side. This allows safe and efficient delivery of power to buildings and equipment.
The star connection is often used on the secondary side to provide both three phase voltage and a neutral point. This setup supports both three-phase and single-phase loads. The delta connection is common on the primary side, especially when the supply does not require a neutral.
Key Components of Three-Phase Transformer
Windings and Core
A three phase transformer relies on its windings and core to convert electrical energy efficiently. The windings, made from copper or aluminum, wrap around the core in star patterns for each phase. Copper windings offer high conductivity and efficiency, making them ideal for demanding three-phase applications. Aluminum windings provide a cost-effective alternative, though they require more space due to lower conductivity.
The core of a three-phase transformer uses silicon steel, often with about 3% silicon content. This material improves magnetic properties and reduces energy losses from hysteresis and eddy currents. Grain-oriented electrical steel (GOES) aligns the grain structure, enhancing magnetic permeability and lowering core losses. Amorphous steel, with its non-crystalline structure, further reduces no-load losses and boosts energy efficiency. These core materials help three-phase transformers operate with minimal energy loss, stable thermal performance, and long service life.
The choice of core and winding materials directly affects transformer efficiency, size, cost, and suitability for power distribution or renewable energy systems.
A three-phase transformer arranges its windings and core to maximize magnetic efficiency. The star configuration spaces the windings 120 degrees apart, balancing the magnetic flux and reducing losses. This design supports reliable voltage conversion for three-phase loads.
Tap Changers and Ratings
Tap changers play a vital role in voltage regulation for three-phase transformers. They adjust the number of winding turns, allowing the transformer to maintain stable output voltage under changing load conditions. Tap changers come in two main types: no-load tap changers, which require the transformer to be de-energized before adjustment, and on-load tap changers, which operate while the transformer remains energized.
-
Tap changers regulate voltage by changing the transformer turn ratio.
-
No-load tap changers suit stable load environments.
-
On-load tap changers provide dynamic voltage regulation without interrupting power.
-
Automatic tap changers use control systems to monitor voltage and adjust taps in real time.
The table below summarizes standard tap changer ratings and features:
|
Aspect |
Details |
|---|---|
|
Standard Tap Ratings |
±2.5%, ±5% of rated voltage (common taps) |
|
Tap Location |
Usually on the high voltage winding |
|
Tap Changer Types |
Load Tap Changer (LTC), No-Load Tap Changer (NLTC) |
|
Capacity Designations |
FC, RC, ANFC, BNFC |
|
Application Context |
Used in three-phase distribution transformers |
Tap changers in three-phase transformers help maintain voltage stability, optimize performance, and improve power quality. The star configuration often works with tap changers to support both three-phase and single-phase loads, ensuring reliable operation across various applications.
Wiring Configurations: Delta and Wye
Delta Connection
A delta connection links the windings of a three-phase transformer end-to-end, forming a closed triangle. This setup does not provide a neutral point. Delta wiring suits industrial environments where heavy three-phase motors operate. The absence of a neutral means the system cannot support line-to-neutral loads directly. Delta connections allow higher short-circuit currents, which help maintain service during faults. If one phase fails, the transformer can continue working at reduced efficiency. Delta configurations also enable load redistribution through circulating currents, which helps balance voltage under unbalanced conditions.
-
Windings connect in a triangle.
-
No neutral wire available.
-
Common in high-power industrial applications.
-
Resilient to phase loss.
-
Circulating currents improve voltage balance.
Wye Connection
A star connection, also called wye, arranges the windings so that one end of each connects to a common neutral point. This configuration provides a neutral wire, which supports grounding and single-phase loads. Utilities often use star wiring for effective fault protection and voltage stability. The neutral allows the transformer to handle unbalanced loads better than delta. Star connections require lower insulation levels due to grounding, which improves safety. In a star system, line voltage is higher than phase voltage by a factor of √3.
-
Windings connect to a common neutral.
-
Neutral wire supports grounding and single-phase loads.
-
Handles unbalanced loads well.
-
Used in mixed load scenarios and long-distance transmission.
-
Lower insulation requirements.
Application Differences
Three-phase transformers use several wiring options to match different needs. Delta-delta configurations suit balanced, high-power loads and can operate in open delta mode if one transformer fails, though with less capacity. Star-star setups provide a neutral for single-phase loads but may face harmonic issues. Delta-star transformers combine the benefits of both, with the delta side balancing loads and the star side offering a neutral for single-phase connections. Delta-star transformers introduce a 30° phase shift, which affects system synchronization.
Special configurations like high leg delta and open delta offer unique advantages. High leg delta supplies both 240 V line-to-line and 120 V line-to-neutral voltages, useful in older installations. Open delta uses only two transformers to deliver three-phase power, reducing cost but lowering efficiency and increasing voltage imbalance.
|
Configuration |
Advantages |
Disadvantages |
|---|---|---|
|
High Leg Delta |
Multiple voltages, supports appliances, reduces wire size |
Poor load balance, risk of equipment damage, limited neutral load |
|
Open Delta |
Lower cost, flexible maintenance, three-phase power with two transformers |
Voltage imbalance, reduced efficiency, uneven transformer loading |
Proper grounding, balanced loads, and regular maintenance improve safety and reliability in every three-phase transformer system.
3-Phase Transformer in Power Distribution
Commercial and Industrial Use
Three-phase transformers play a central role in modern power distribution. In commercial and industrial settings, these transformers deliver reliable electricity for lighting, HVAC, and heavy machinery. Facilities often use pad-mounted transformers, which sit on concrete pads and feature locked steel cabinets. These units work well in areas with underground lines and limited space. Pole-mounted transformers, on the other hand, are installed on utility poles. They are easy to access for maintenance and are common in overhead line systems. Many industrial sites use a three phase transformer bank, which consists of three single-phase transformers connected together. This setup provides redundancy and scalability for large loads.
The most common three-phase transformer connection types include:
-
Delta-Delta: Both windings in delta, ideal for high current, low voltage equipment.
-
Delta-Star: Delta primary and star secondary, provides a neutral for single-phase loads.
-
Star-Delta: Star primary and delta secondary, often used for industrial motors.
-
Star-Star: Both windings in star, suitable for balanced loads and medium voltage.
These configurations help facilities match their load requirements and maintain system reliability.
|
Aspect |
Pole-Mounted Transformers |
Pad-Mounted Transformers |
|---|---|---|
|
Installation |
Mounted on utility poles, elevated above ground |
Ground-mounted on concrete pads, enclosed in locked steel cabinets |
|
Typical Location |
Rural or residential areas with overhead lines |
Residential or commercial areas with underground lines |
|
Accessibility |
Bucket trucks for maintenance |
Elbow connectors for maintenance |
|
Application |
Overhead line systems, scalable with transformer banks |
Underground systems, compact and secure |
Voltage Levels and Load Types
Three-phase transformers step down medium voltage from distribution lines to levels used by equipment. In the United States, common voltages include 208V, 240V, 277V, and 480V. Canada often uses 600V, while Europe and Asia use 400V and 380V. Renewable energy systems may use 600V to 800V. The chart below shows typical voltage levels across regions:
Three-phase transformers support a range of load types. Manufacturing plants use three-phase three-wire delta systems for motors. Commercial buildings often use three-phase four-wire star systems for lighting and HVAC. High-leg delta systems appear in older facilities, supporting both three-phase and single-phase loads.
Three-phase transformers maintain system balance through their winding configurations. Star systems include a neutral wire, which helps manage unbalanced single-phase loads. Delta-star connections provide voltage stability and support both three-phase and single-phase equipment. Proper load distribution across all phases ensures efficient use of transformer capacity and stable power distribution.
Three-phase transformers support modern power distribution by providing safe and efficient voltage conversion. Their design uses the star configuration to deliver reliable power for many applications. The star connection allows the transformer to supply both three-phase and single-phase loads. Star windings help balance the system and improve safety. Star connections also make voltage regulation easier. Many industries choose the star setup for its flexibility. Star wiring supports different voltage levels. Star transformers work well in commercial and industrial settings. Star systems handle heavy loads and keep voltage stable. Star connections reduce energy loss. Star transformers last longer and need less maintenance. Star designs help meet changing power needs. Zoliov offers advanced three-phase transformer solutions with star configurations for dependable performance.
FAQ
What is the main purpose of a three-phase distribution transformer?
A three-phase distribution transformer changes voltage levels in power systems. It helps deliver electricity safely and efficiently to commercial and industrial buildings. This transformer supports both three-phase and single-phase loads.
How does a three-phase transformer differ from a single-phase transformer?
A three-phase transformer uses three sets of windings and handles higher power loads. It provides balanced power for large equipment. A single-phase transformer has one set of windings and serves smaller, residential loads.
What are common voltage outputs for three-phase transformers?
Common voltage outputs include 480V, 277V, 240V, 208V, and 120V. These voltages support different types of equipment and lighting in commercial and industrial settings.
Why are delta and wye connections important?
Delta and wye connections allow transformers to match different voltage and load requirements. Delta connections suit heavy machinery. Wye connections provide a neutral wire for single-phase loads and improve system balance.
Where are three-phase transformers usually installed?
Three-phase transformers are often installed outdoors. Pad-mounted units sit on concrete pads near buildings. Pole-mounted units attach to utility poles. Both types help deliver power to factories, offices, and shopping centers.
