Why Vector Group Matters for Parallel Transformer Operation

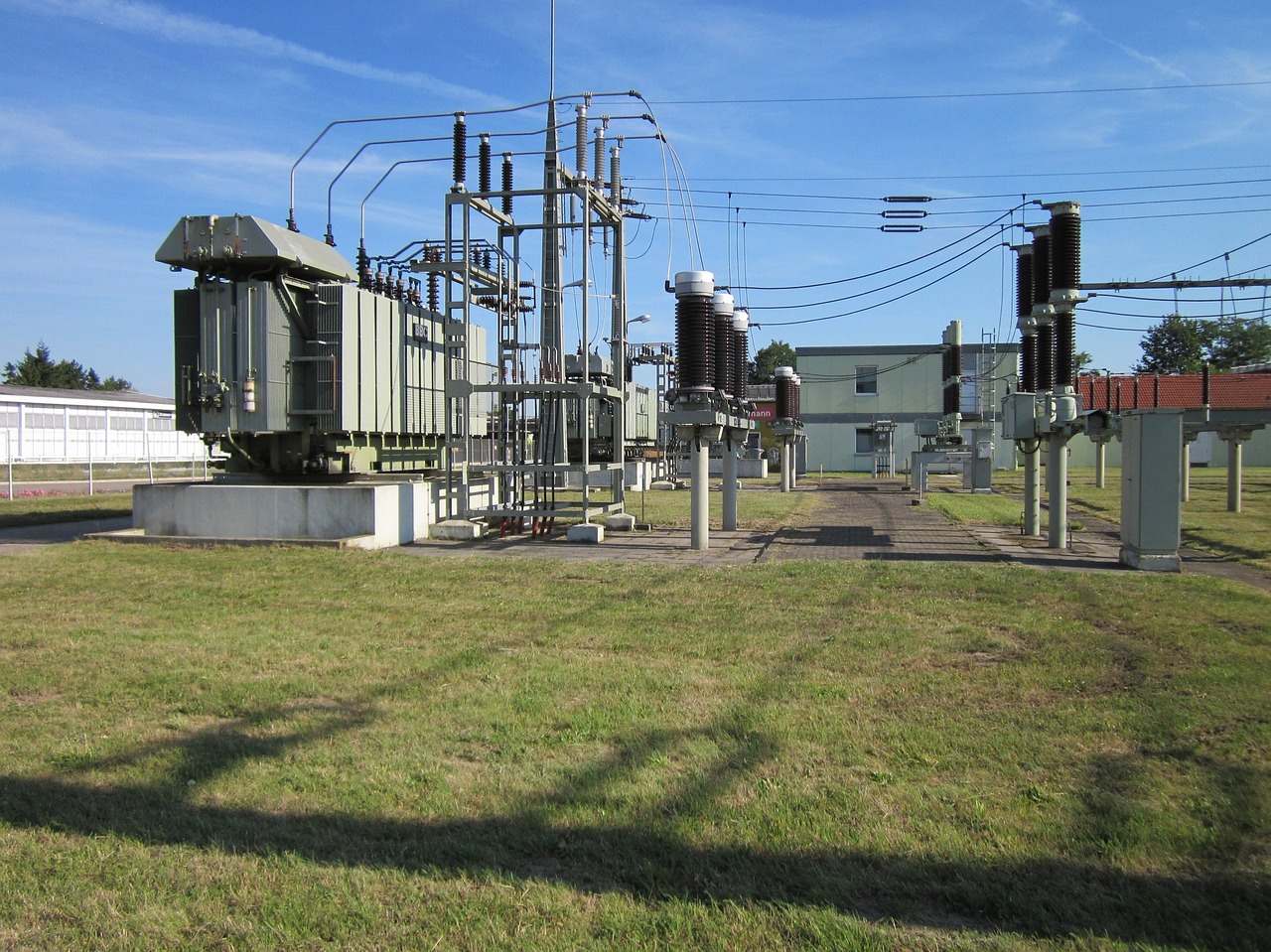

Mismatched vector groups create phase angle differences. You will see circulating currents, system disturbances, and equipment damage if you parallel transformers with different vector groups. The vector group tells you the winding connections and phase relationships, which electrical engineering standards say must match for safe paralleling. When you use zoliov’s transformer, you benefit from expert design and precise vector group alignment. This is why vector group affects parallel operation in every power system.

Key Takeaways

• Always match vector groups before paralleling transformers to prevent phase angle differences and system disturbances.

• Check the vector group nameplate on transformers to ensure compatibility and avoid costly mistakes.

• Monitor voltage, impedance, and tap positions in addition to vector groups for safe and reliable transformer operation.

• Be aware that mismatched vector groups can lead to overheating, unbalanced load sharing, and equipment damage.

• Use proper testing equipment to verify phase relationships and ensure all transformers are aligned before connecting.

Why Vector Group Affects Parallel Operation

https://www.youtube.com/embed/bbzkZbbDIhs

Phase Alignment in Transformers

You need to understand why vector group affects parallel operation before you connect multiple transformers. The vector group defines the winding configurations and the phase shift between the primary and secondary sides. When you look at three-phase transformers, each vector group creates a specific phase angle difference. This phase shift determines how the output voltages align with each other.

If you compare different vector groups, you will see that some introduce a 30-degree phase shift, while others have no phase shift at all. The table below shows common vector groups and their phase shifts:

Vector Group	Phase Shift (Degrees)
11	30 leading
0	No phase shift

You must match the phase alignment when you perform transformer parallel operation. If you connect transformers with different vector groups, their secondary voltages will not be in phase. This misalignment causes circulating currents and system instability.

Impact on Transformer Paralleling

Why vector group affects parallel operation becomes clear when you try to parallel transformers with different phase shifts. For example, if you connect a Dyn1 transformer with a Dyn11 transformer, you create a 60-degree phase difference. This difference leads to severe problems. You will see circulating currents that do not deliver useful power. These currents cause overheating and may damage your equipment.

The table below highlights typical phase shift values for common transformer vector groups:

Vector Group	Phase Shift
Dyn1	+30°
Dyn11	-30°
Yyn0	N/A
Yd1	N/A

You must always check the vector group before transformer parallel operation. If you ignore this step, you risk unbalanced load sharing. One transformer may carry more load than the other, which can lead to failure. Protection relays may also trip unnecessarily because they detect abnormal currents caused by phase misalignment.

In industrial and utility applications, you often see combinations like Dyn1, YNd11, and Dy1. Each has a unique phase shift and winding configuration. The table below summarizes these combinations:

Vector Group	Description	Phase Shift
Dyn1	Delta/ Wye step down transformer	30 degrees
YNd11	Wye/ Delta step up transformer	-30 degrees
Dy1	Delta/ Wye without accessible neutral	0 degrees

You must ensure that all transformers in parallel have the same vector group. This practice guarantees proper phase alignment and safe paralleling. When you use zoliov’s transformer, you get precise vector group matching, which helps you avoid these issues. Why vector group affects parallel operation is not just a technical detail—it is a critical factor for system reliability and safety.

Transformer Paralleling Requirements

Matching Vector Groups

When you connect transformers in parallel, you must match the vector group. This step prevents phase angle differences and ensures that the output voltages align perfectly. If you ignore vector group compatibility, you risk voltage mismatch, circulating currents, and equipment overload. Industry standards require that transformers connected in parallel share the same vector group. Local grid codes may also specify which vector groups you can use for compatibility and interoperability.

Tip: Always check the vector group nameplate before paralleling. This simple action helps you avoid costly mistakes and system disturbances.

International guidelines recommend that you select a transformer vector group based on your network’s voltage, phase angle, and grounding needs. If you plan to operate transformers in parallel, you must use identical vector groups. This practice keeps your system stable and prevents unnecessary trips from protection relays.

Other Key Parameters: Voltage, Impedance, Tap Position

Vector group matching is only one part of transformer paralleling. You must also pay close attention to voltage, impedance, and tap position. These parameters affect how transformers share load and respond to system changes.

• You need to match the voltage of each transformer as closely as possible. Even a small voltage mismatch can cause circulating currents and unbalanced load sharing.

• Impedance must be similar between units. If one transformer has much lower impedance, it will carry more load and may overheat. Good practice is to keep the relative short-circuit voltages within 10% of each other.

• Tap positions should be set to the same level. If tap positions differ by more than a couple of steps, you may see significant voltage differences and poor load sharing. After closing the tie breaker, set taps to the same position as soon as possible.

When you follow these requirements, you ensure safe and reliable paralleling. You protect your transformers from damage and keep your power system running smoothly.

Problems from Mismatched Vector Groups

Circulating Currents and Overheating

You face serious risks when you parallel transformers with a mismatch in vector group. The most immediate problem is the formation of circulating current. This current flows between transformer secondary windings because their voltages are out of phase. For example, if you connect a Dyn11 transformer with a Yd1 transformer, the 30-degree phase difference creates a voltage potential between the terminals. This potential difference forces a large circulating current through the windings.

Circulating current does not deliver useful power. Instead, it causes excessive heat inside the transformer. Overheating can damage insulation, shorten equipment life, and even lead to catastrophic failure. You must always match the vector group before transformer paralleling to prevent these issues. In systems with multiple transformers, matching the vector group ensures efficient load sharing and keeps circulating current to a minimum.

Note: Overheating from circulating current can reduce transformer efficiency and increase maintenance costs.

Unbalanced Load Sharing

A mismatch in vector group leads to unbalanced load sharing between transformers. Even if you match voltage ratios, the phase difference causes one transformer to carry more load than the other. This imbalance can overload one unit while the other remains underutilized. You may see protection relays trip and system instability as a result.

• Mismatched vector groups can lead to circulating currents and load sharing imbalances, even if voltage ratios are the same.

• A utility connected a new transformer with Yd1 to an existing Yd11 unit, resulting in overloading of one transformer and triggering protection relay trips.

Unbalanced load sharing creates several risks. Equipment overheating becomes more likely when one transformer carries too much current. Sensitive devices, such as solar inverters, may suffer damage from excessive heat. You might notice flickering lights or frequent circuit breaker trips, which signal voltage fluctuations and instability in your power distribution system.

Protection Relay Issues

Protection relays play a critical role in transformer paralleling. You rely on these devices to detect faults and disconnect equipment before damage occurs. A mismatch in vector group disrupts relay operation. The phase angle difference and circulating current confuse the relay, causing it to trip unnecessarily or fail to respond during a real fault.

• Protection relays must be configured to check phase angles before closing ties between sources to prevent issues.

• Mismatched transformer vector groups can lead to unbalanced loading and circulating currents, which affect relay operation.

• Careful analysis of the system is necessary to ensure that the transformers and feeders are compatible to avoid excessive fault currents.

Common protection relay malfunctions include:

Problem	Cause	Result
Circulating currents and overheating	Vector group mismatch	Reduced efficiency, damage
Voltage imbalances and phase shifts	Incorrect vector group selection	Equipment malfunction
Protection coordination issues	Vector group incompatibility	Inadequate fault coverage

You must analyze your system and verify vector group compatibility before transformer paralleling. This step prevents excessive fault currents and ensures reliable protection relay operation. When you avoid mismatch, you protect your equipment and maintain system stability.

Ensuring Safe Transformer Paralleling

How to Check Vector Groups

You must verify the vector group before you parallel any transformer. This step prevents costly mistakes and system disturbances. In the field, you can use a simple test to confirm the correct phase relationship. Start by shorting the R phase terminals of both the high-voltage and low-voltage windings. Apply a three-phase supply to the high-voltage winding at the normal tap position. Measure the voltage across the terminals and compare your readings with the expected values for the transformer’s vector group. If the measured voltages do not match the expected pattern, you have a connection or phase error.

To perform these checks accurately, you need reliable equipment. The table below lists essential tools for field verification:

Equipment Type	Description/Link
Clamp Meter	Clamp Meter
Digital Voltmeters	Digital Voltmeters
SCADA System	SCADA System
Earth Resistance Testing	Earth Resistance Testing
Ammeter	What is an Ammeter
Ampere Meter	Ampere Meter
Megger IR Testing	Megger IR Testing

Best Practices for Field Implementation

You can avoid most paralleling problems by following industry best practices. Always ensure the output voltages of the transformers are equal. This step prevents circulating currents and overheating. You should verify phase alignment by measuring the voltage between the outputs. If you see a reading close to zero volts, the phases are aligned.

Field errors often occur when you overlook phase relationships or grounding compatibility. The table below highlights common mistakes:

Error Type	Description
Load Sharing	Requires identical phase relationships, not just the same voltage and kVA.
Relay Protection Malfunctions	Protection relay misoperation due to vector error is a top cause of unexpected disconnections.
Grounding Compatibility Errors	Mismatched neutral points can make fault location and clearance nearly impossible.

Tip: Always document your test results and confirm all connections before energizing the system. Careful preparation keeps your transformer installation safe and reliable. 🛡️

You must match vector groups to ensure safe and reliable transformer paralleling.

Transformers with different vector groups cannot be connected in parallel because this would cause circulating currents to flow.

If you ignore this rule, you risk several problems:

• Increased heating losses from harmonic currents.

• Insulation failure due to unbalanced loading.

• Reduced transformer lifespan from overheating.

• Unequal load distribution and circulating currents that damage insulation.

• Harmonic distortions causing power quality issues.

Before you parallel transformers, follow these steps:

1. Conduct a voltmeter test to check polarity.

2. Use windings to confirm instantaneous polarity.

3. Verify that all units have the same percent impedance.

You protect your transformer and your entire system when you check every parameter and follow best practices.

FAQ

What happens if you parallel transformers with different vector groups?

You create phase angle differences. This leads to circulating currents, overheating, and possible equipment damage. Always match vector groups before paralleling to keep your system safe.

How do you check a transformer’s vector group in the field?

You read the nameplate on the transformer. You can also perform a voltage test using a clamp meter and voltmeter. This confirms the phase relationship and winding configuration.

Why is matching impedance important when paralleling transformers?

Matching impedance ensures balanced load sharing. If impedance differs, one transformer carries more load, which causes overheating and reduces efficiency.

Can you parallel transformers with different tap positions?

No. You must set tap positions to the same level. Different tap positions cause voltage mismatch, leading to unbalanced load sharing and possible relay trips.

What tools help you verify safe paralleling?

• Clamp meter

• Digital voltmeter

• SCADA system

Tip: Always document your test results before energizing the system.
